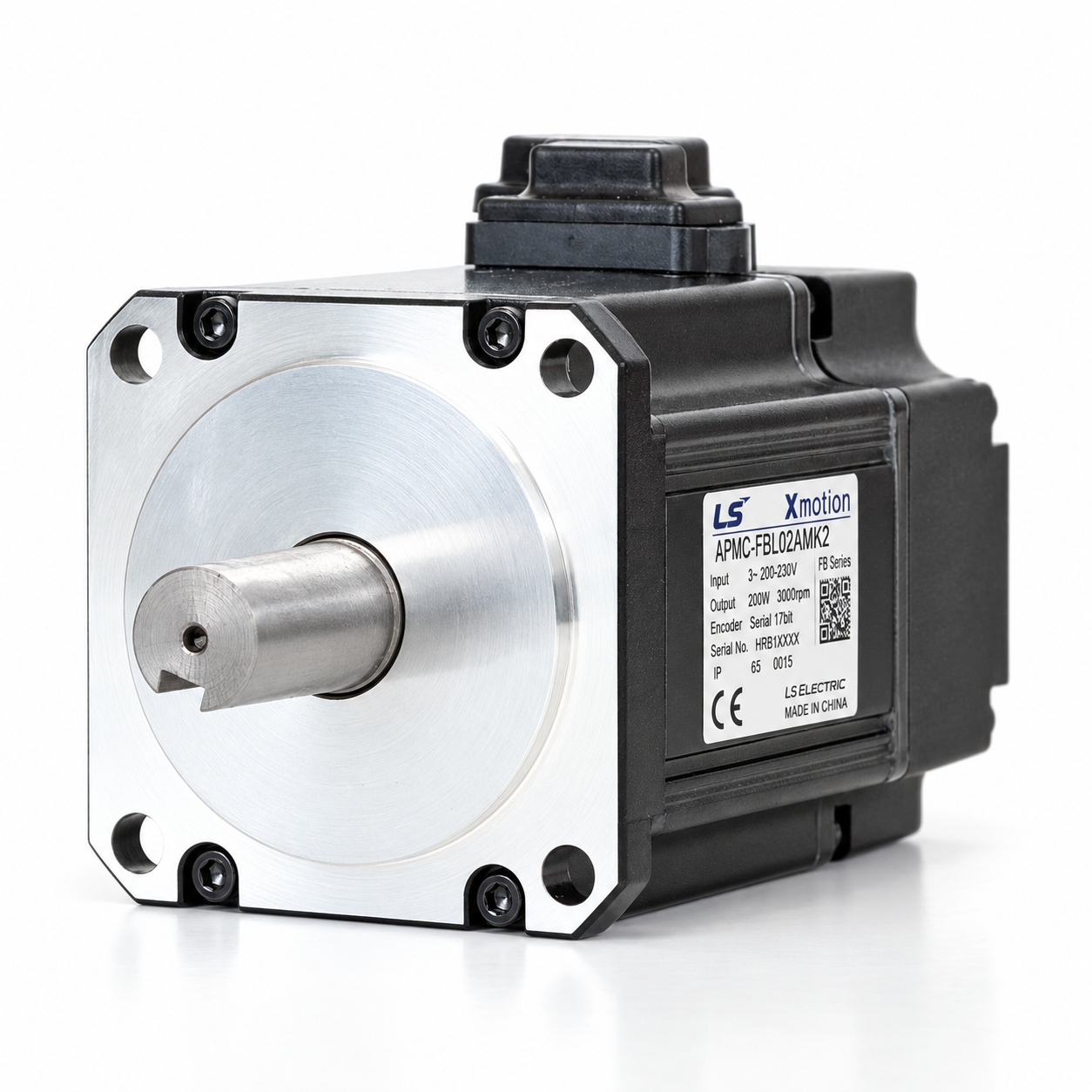

APMC-FBL02AMK2 Servo Motor 0,2kW/200V

APMC-FBL02AMK2 Servo Motor 0,2kW/200V

Šifra izdelka: 4716081700
Proizvajalec: LS Electric
Ni na zalogi

Rated/Max rpm : 3000/5000[rpm]
Rated/Max torque : 0,64/1,91[N.m]
Rated/Max current : 1,45/4,35 [A]

Speed, Position transducer: 19 bit serial Single-Turn Encoder - 16 bit Multi-Turn

Flange Size: 60mm

BRAKE Static Friction Torque 1,47 [Nm]
BRAKE 24VDC ; 0,27A

Za ogled cene in nakup se v B2B portal
Pošlji povpraševanje
Imate dodatna vprašanja o tem produktu?
Napajalna napetost (V):
200 V
Nazivna hitrost (min⁻¹):
3000 min⁻¹
Velikost prirobnice (mm):
60 mm
Nazivni tok (A):
1.45 A
Moč (kW):
0.2 kW
Zavora:
z zavoro
Enkoder:
absolutni, 19-bit single-turn / 16-bit multi-turn
Nazivni navor (Nm):
0.64 Nm
Zaloga:
Ni na zalogi
Proizvajalec:
LS Electric
