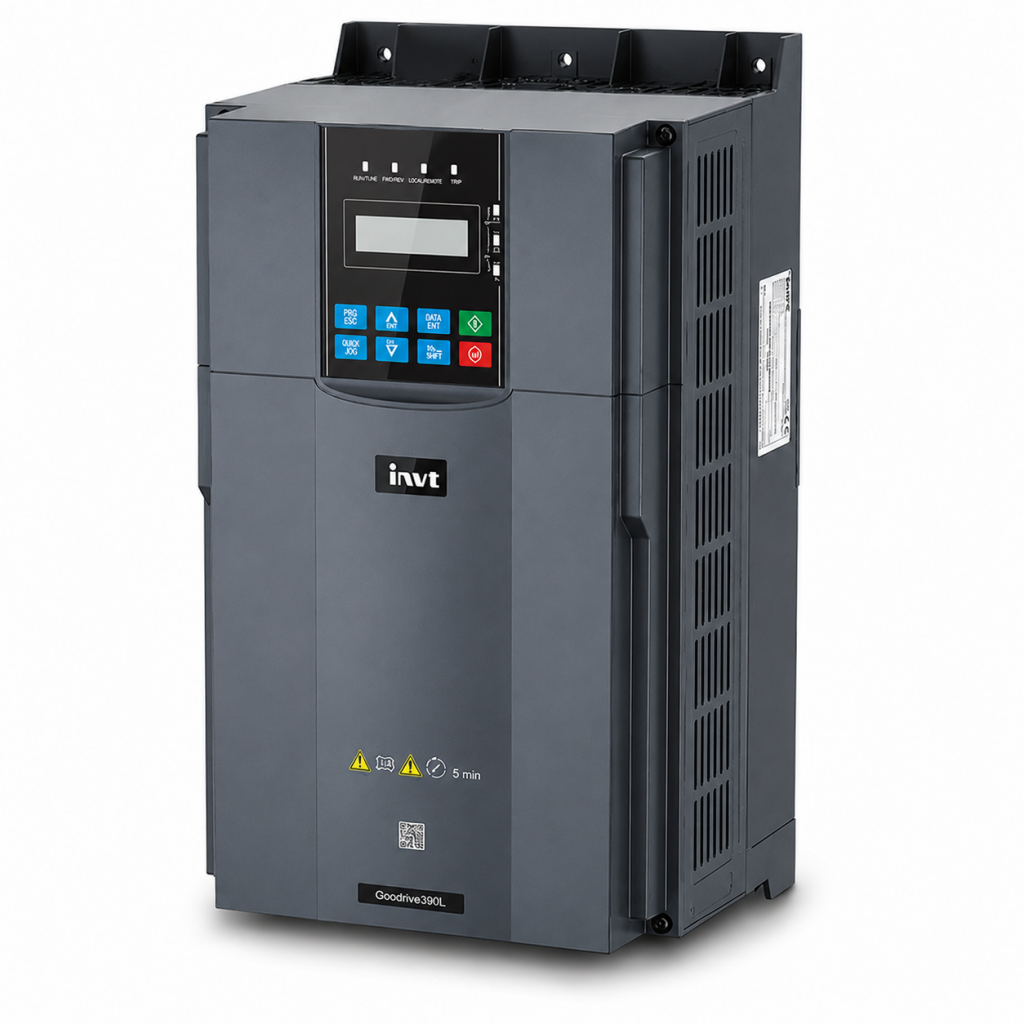

GD390L-030G-4-C2 INVT GD390L 30 kW, 3x400 V – Lift-Dedicated Variable Frequency Drive

GD390L-030G-4-C2 INVT GD390L 30 kW, 3x400 V – Lift-Dedicated Variable Frequency Drive

Product code: GD390L-030G-4-C2
Manufacturer:
Out of stock

Rated power:
30 kW

Rated output current:
60 A

Power supply:
Three-phase input 380–440 V AC
Rated voltage: 400 V
Three-phase output

Motor control:
Sensorless Vector Control (SVC)
Feedback Vector Control (FVC)
Asynchronous motors (AM) and permanent magnet synchronous motors (PMSM)

Overload capacity:
150% of rated current for 60 s
200% of rated current for 10 s

Safety and communication:
STO (Safe Torque Off), SIL3
CANopen and RS-485

Additional features:
Built-in braking unit
Built-in C2 EMC filter
Local LCD keypad

Mechanical specifications:
Protection rating: IP20
Dimensions: 270 × 455 × 218 mm (W × H × D)
Net weight: 17 kg

To view the price and make a purchase, please to the B2B portal
Send inquiry
Do you have additional questions about this product??
