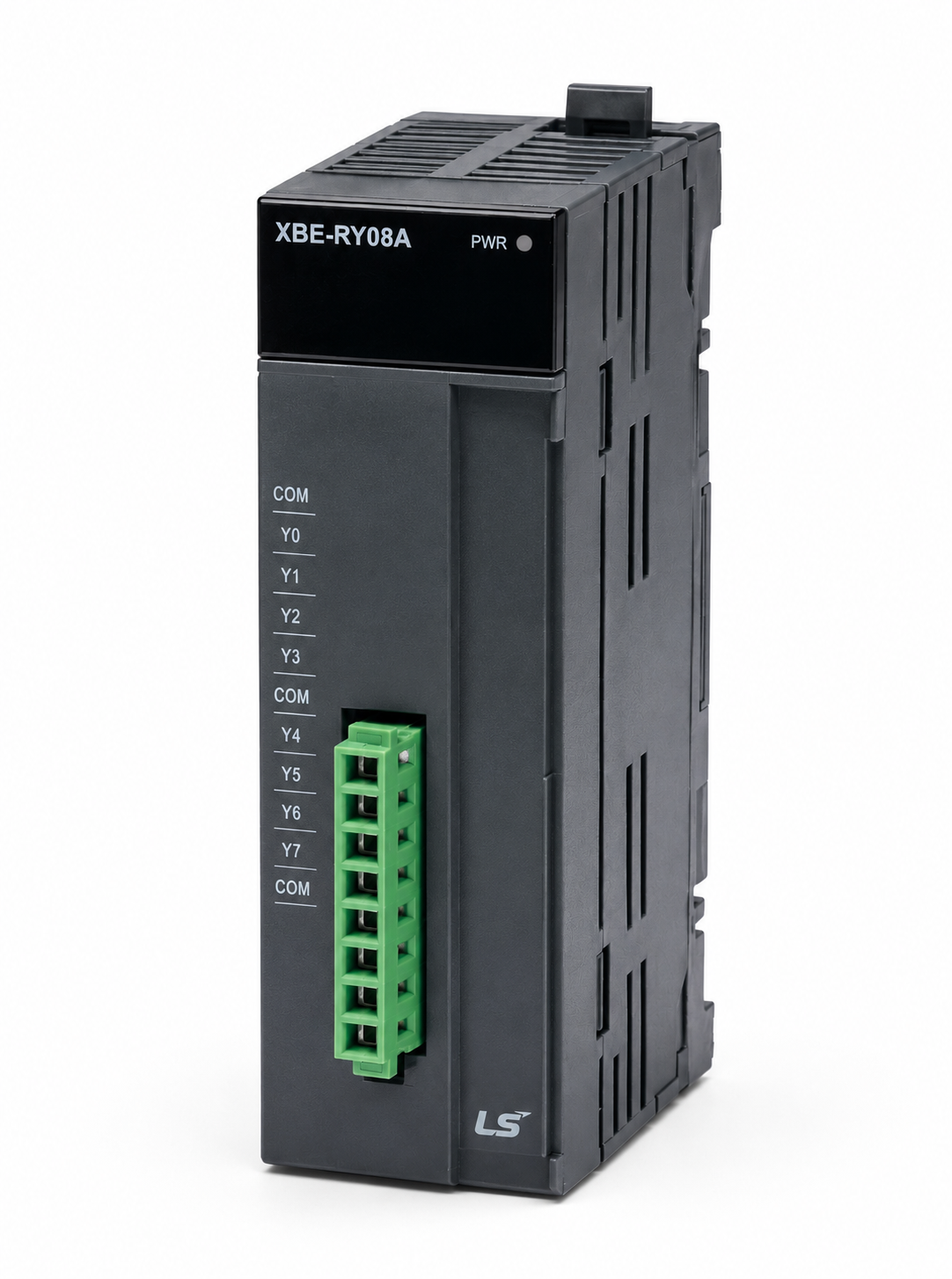

XBE-RY08A – PLC expansion module 8 relay outputs

XBE-RY08A – PLC expansion module 8 relay outputs

Product code: 4723000900
Manufacturer:
In Stock
Type: PLC expansion output module
Outputs: 8 relay outputs (8DO)
Purpose: control of digital output signals in PLC systems
Design: industrial automation module
Output element: relay contacts
Mounting: on PLC expansion unit
To view the price and make a purchase, please to the B2B portal
Do you have additional questions about this product??

XBE-RY08A XGB series Digital I/O Expansion Module DC24V Relay output 8 points.

Specifications:

Rated Input Voltage/Current 24VDC: 2A (Resistive Load), 220VAC: 2A, 5A/COM

Min. Load Voltage/Current: 5VDC/1mA

Max. Load Voltage: 250VAC, 125VDC

Off Leakage Current: 0.1mA (220VAC, 60Hz)

Max. On/Off Frequency: 3,600 times/hr

Response Time: Off → On 10ms or less, On → Off 12ms or less

Service Life Mechanical: 20 Million Times or More

Electrical Rated Load Voltage/Current: 100,000+ Times; 200VAC/1.5A, 240VAC/1A 100,000+ Times;

200VAC/1A, 240VAC/0.5A 100,000+ Times; 24VDC/1A, 100VDC/0.1A 100,000+ Times
