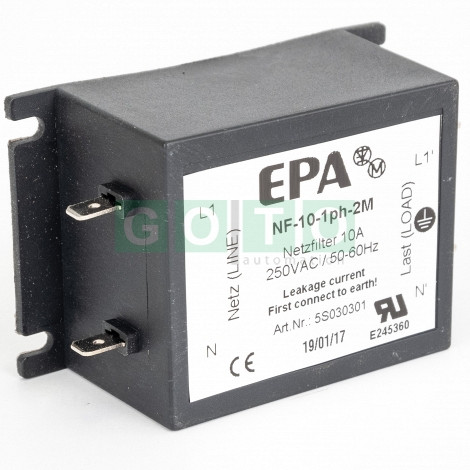

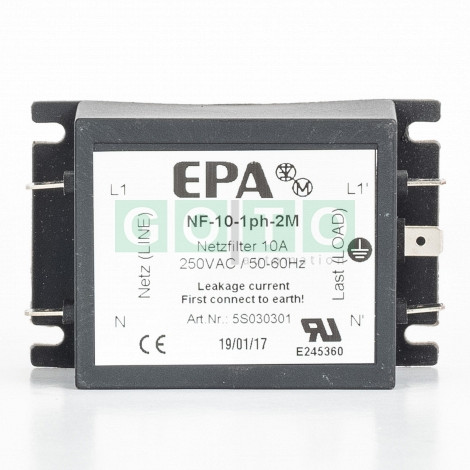

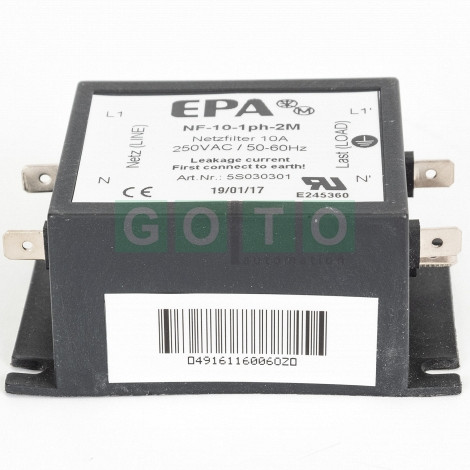

EPA NF-10-1PH-2M 1PHASE FILTER 2STAGE 10A/250VAC
Šifra izdelka:
EPANF102M-1PH
Proizvajalec:
EPA
Nominal voltage: 250 VAC, 1-phase
Frequency range: DC up to 62 Hz
Nominal current: 1-phase: 1 A up to 10 A @ 50°C
Overload capability: 4 times rated current at switch on, then 1,5 times rated current for 1 minute, once per hour
Moulded box type case
Chassis mounting with holes
Fast-on connectors 6,3 mm (fingerproof when using isolated fast-on connectors),
PE (Earth) via fast-on connector
Degree of protection: IP 20
Class of flammability UL 94V-2 or better
IEC-Climate category: (25/85/21) -25 °C up to +85 °C
Approvals: CE, UL
Built according to: EN 60939-1, UL 1283, RoHS (2002/95/EC)
Operation and storage according to EN 60068
Class of application: HPF according to DIN 4004
Frequency range: DC up to 62 Hz
Nominal current: 1-phase: 1 A up to 10 A @ 50°C
Overload capability: 4 times rated current at switch on, then 1,5 times rated current for 1 minute, once per hour
Moulded box type case
Chassis mounting with holes
Fast-on connectors 6,3 mm (fingerproof when using isolated fast-on connectors),
PE (Earth) via fast-on connector
Degree of protection: IP 20
Class of flammability UL 94V-2 or better
IEC-Climate category: (25/85/21) -25 °C up to +85 °C
Approvals: CE, UL
Built according to: EN 60939-1, UL 1283, RoHS (2002/95/EC)
Operation and storage according to EN 60068
Class of application: HPF according to DIN 4004
| Tok A: |
10 A
|
| Zaloga: |
Na zalogi
|
| Proizvajalec: |
EPA
|
