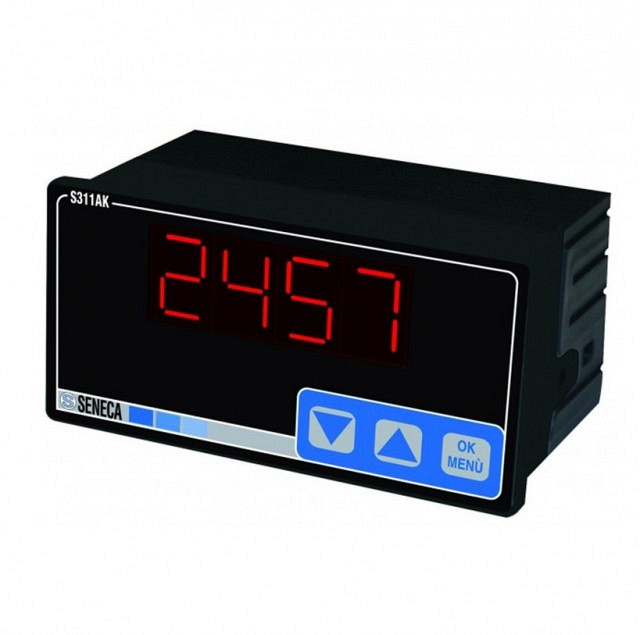

Seneca S311AK-4-L 4-mestni digitalni prikazovalnik z analognim vhodom (tok/napetost), visoki razred natančnosti

Display 4 digits
Current 0–20 mA; Voltage 0–10 V and ±10 V (bipolar inputs supported)
Voltage: 100 kΩ | Current: ≈ 50 Ω
Sensor / loop supply 16 V, max 25 mA
Power supply 10–40 Vdc; 19–28 Vac
Power consumption Max 0.9 W
Resolution 16 bit (up to 40,000 points)
Accuracy 0.05% (max)
Thermal drift 0.005 % / °K
Linearity error 0.05%
Galvanic isolation 1500 Vac between input and power supply
Front protection IP65 (with supplied gasket)
Dimensions (depth) 40 mm
Panel cut-out 92 × 45 mm
Terminals Removable screw terminals — power: 2-way; inputs: 3-way; 5.08 mm pitch
Materials and weight PC/ABS UL94-V0, approx. 100 g
Operating conditions -10°C..+65°C, humidity 30%…90% (non-condensing); storage -30°C..+85°C; altitude up to 2000 m
Password-protected menu, configurable decimal points, selectable digital filter
