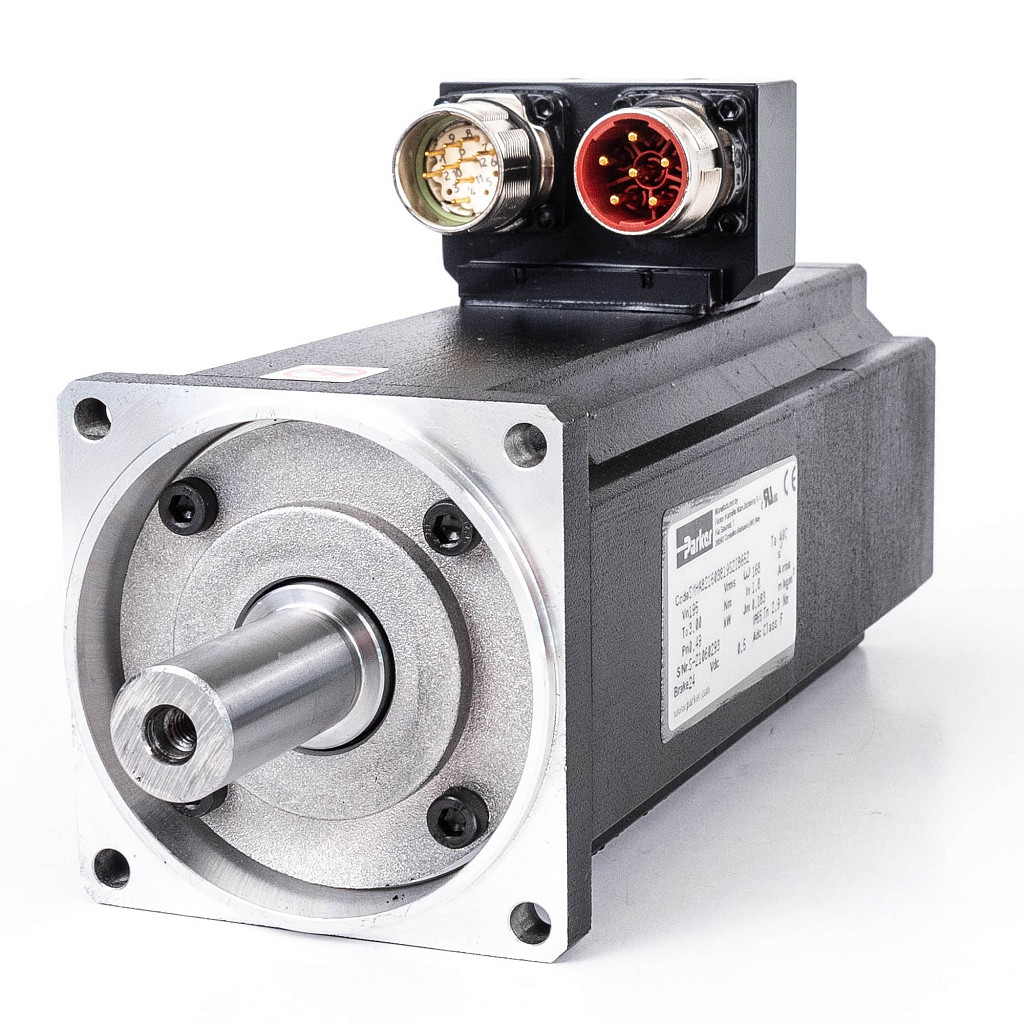

SMH11530108192I644 Parker SMH-Series Brushless Servo Motor

SMH11530108192I644 Parker SMH-Series Brushless Servo Motor

Šifra izdelka: 12866
Proizvajalec:
Na zalogi
In=4,8A
vn= 327 Vrms

No Brake Option
No Cooling Option
115mm Frame Motor
3000 RPM / 400V Winding
10Nm Continuous Stall Torque
Flange 8
Shaft 19mm Diameter x 40mm Length [ ] Shaft with Keyway
2x Rotatable Interconnectron Connectors [64] IP64 Protection Class
Resolver Feedback (Standard)
Standard Inertia
400V Winding
Za ogled cene in nakup se v B2B portal
Pošlji povpraševanje
Imate dodatna vprašanja o tem produktu?
Zavora:
brez
Nazivna hitrost (min⁻¹):
3000 min⁻¹
Nazivni tok (A):
8.4 A
Nazivni navor (Nm):
8 Nm
Moč (kW):
2.5 kW
Napajalna napetost (V):
230 V
Velikost prirobnice (mm):
115 mm
Enkoder:
resolver
Zaloga:
Na zalogi
Proizvajalec:
Parker
