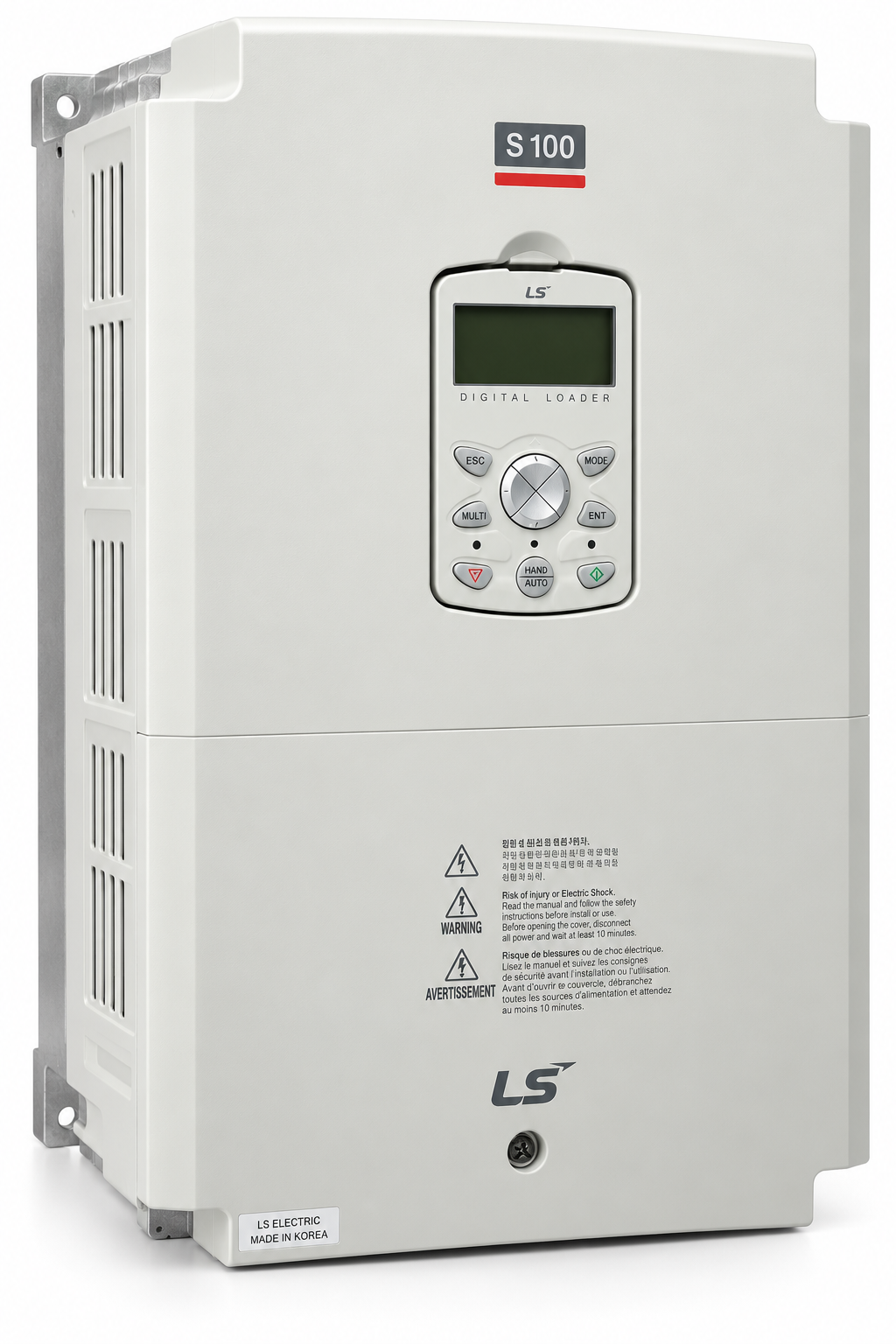

LSLV0300S100-4CONDS Frequency Inverter S100 30/37kW 400V

LSLV0300S100-4CONDS Frequency Inverter S100 30/37kW 400V

Product code: 6031006000
Manufacturer: LS Electric
Out of stock

Dual rating:
30kW/61A Heavy Duty-150% Overload/1 min;
37kW/75A Normal Duty-120% Overload/1 min;

3 Phase Input,3 Phase Output,
380-480 Volts
control modes: U/f, sensorless vector IM , PM motor control
Output frequency:
0.1 - 400 Hz - U/f
0-120 Hz - IM Sensorless

Built-in Safe Torque Off(STO) (EN60204-1, stop category 0)

LCD Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
standard IO - control terminal I/O 5mm pitch
Dual motor parameters

PID controller
RS 485 interface-LS Bus / Modbus RTU
Drive View Software

IP20, 275 x 450 x 284 mm [WxHxD] ; 26 kg

To view the price and make a purchase, please to the B2B portal
Send inquiry
Do you have additional questions about this product??
Built-in Brake Module:
No
Safe Torque Off:
STO SIL2
Manufacturer:
LS Electric
Communication:
Modbus
EMC Filter:
None
Protection IP:
IP20
Control Type:
V/f Standard
slip compensation
Sensorless Vector
PM Motor Control
