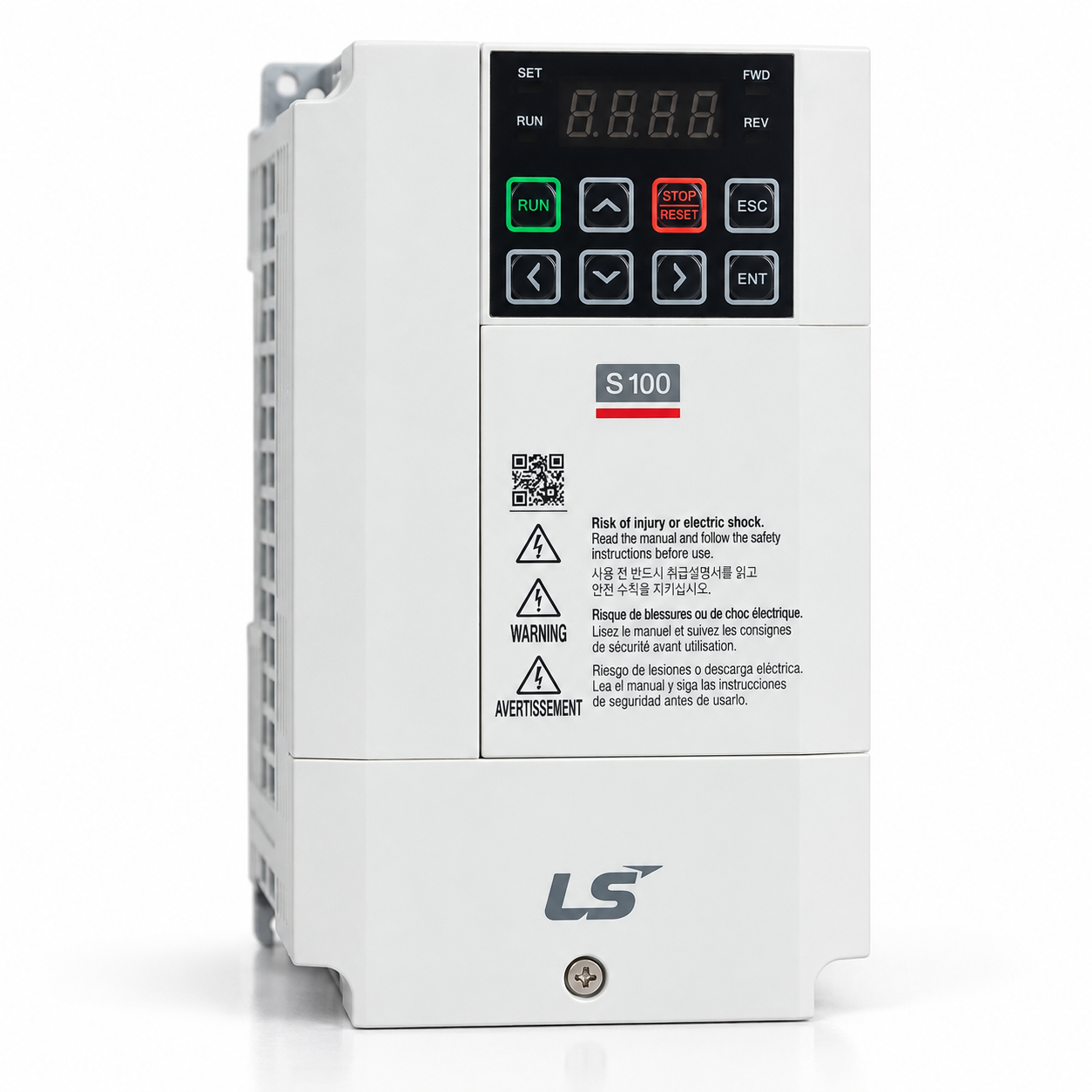

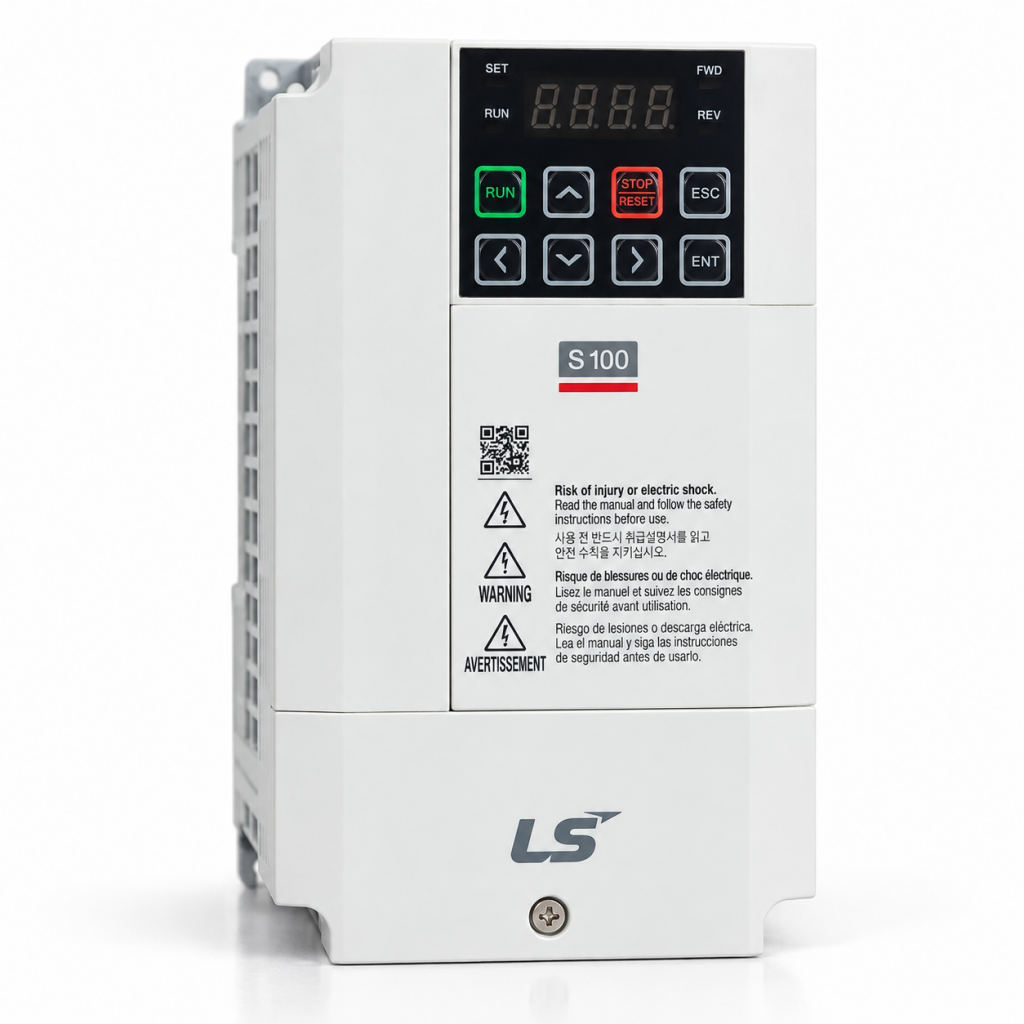

LSLV0015S100-4EOFNM Frekvenčni pretvornik S100 1,5/2,2kW 400V

Dual rating:
1,5kW/4,0A Heavy Duty-150% Overload/1 min;
2,2kW/5,1A Normal Duty-120% Overload/1 min;

3 Phase Input,3 Phase Output,
380-480 Volts
control modes: U/f, sensorless vector IM , PM motor control
Output frequency:
0.1 - 400 Hz - U/f
0-120 Hz - IM Sensorless

Built-in Safe Torque Off(STO) (EN60204-1, stop category 0)

LED Keypad
Built-in EMC filter(C3)- Industrial
BRAKE CHOPER BUILD IN
PNP / NPN logic
Dual motor parameters
PID controller
RS 485 interface-LS Bus / Modbus RTU
Drive View Software

Multiple I/O + pulse I/O IO - control terminal I/O 3.5mm pitch:

7 digital inputs (programmable)
2 analog inputs (programmable) (+-10V, 0(4)-20mA)
1 programmable pulse train input
1 programmable pulse train output
1 programmable analogue output (programmable)
1 programmable Relay output
1 programmable transisitor output
MODBUS RTU

IP20, 100 x 180 x 140 mm [ŠxVxG] ; 3,9kg
