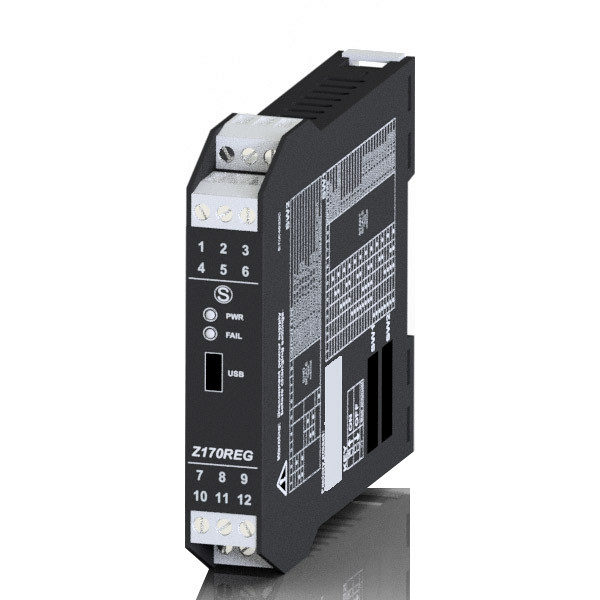

Seneca Z170REG-1 – Univerzalni pretvornik z dvema galvansko ločenima analognima izhodoma

Power supply 10..40 Vdc; 19..28 Vac
Transducers power supply Yes, Max 25 mA, 17 Vdc
Power consumption 0,5..2 W
Insulation 1.500 Vac
Status LED Power supply

Alarm
Accuracy class 0,1%
Interface Micro USB (front panel)
Input channel 1 settable input:
VOLTAGE: 0..10 V settable scale
CURRENT: 0..20 mA (active/passive module) settable scale
Potentiometer: 1 kΩ ..100 kΩ settable scale
TC: J,K,R,S,T,B,E,N
RTD: Pt100, Pt500, Pt1000, Ni100
Resolution 14 bit
Sampling period settable from 5 up to 20 ms
Output channels 2 settable outputs:
VOLTAGE: 0..10 V settable scale
CURRENT: 0..20 mA (active/passive) settable scale
Resolution 14 bit
Response time < 25 ms
Thermal drift 0,01% /K
Linearity <1% (input), 0.01% (output)
Programming DIP-switch
Software (EASY SETUP)
Android app ( EASY SETUP app)

Operating temperature -10..+65°C
Dimension (WxHxD) 17,5 x 100 x 112 mm
Connections Removable screw terminals
Housing Nylon 6 30% glass fiber
Mounting DIN rail guide 35 mm (IEC/EN 60715)
Protection degree IP20
Weight 200 g
Standard CE
Norms EN 61000-6-4, EN 61000-6-2, EN 61010-1
